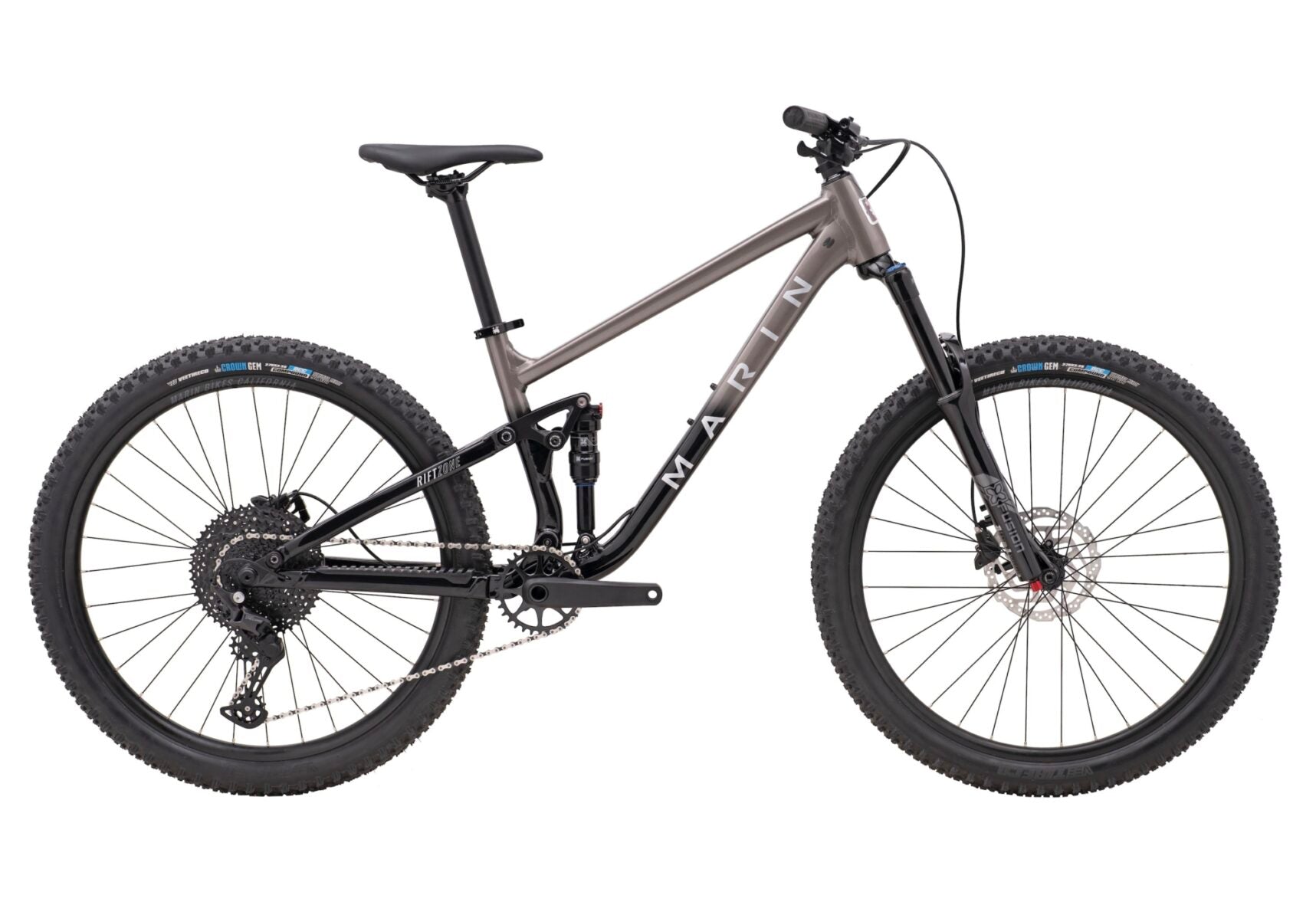

Rift Zone 1 2023

This is the new color and frame. We still have lots of 2022s in stock and on sale.

ALL AROUND TRAIL ENJOYMENT

HAVING FUN

The Rift Zone 27.5 is our most playful trail bike, made for the rider that catches a bit of air off of every root in the trail, is always looking for an alternate line, and ends every ride with a smile. This is an all-around suspension bike with trail performance far out stretching the asking price.

Specifications

  • Frame

    All New Series 3 6061 Aluminum Frame, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs

  • Front Suspension

    X-Fusion Sweep Boost RC, 27.5", 140mm Travel, Compresion and Rebound Adjustment, 110x15mm Thru Axle, 44mm Offset

  • Rear Suspension

    X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom

  • Rims

    Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

  • Tires

    Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready

  • Derailleur, Rear

    Shimano Deore, 11 Speed, SGS

  • Shift Lever

    Shimano Deore, 11-Speed, SL-5100R

  • Crankset

    Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

  • Bottom Bracket

    External Sealed Cartridge Bearing

  • Chain

    KMC X-11 Silver and Black

  • Cassette

    Sunrace, 11-Speed, 11-51T, ED Black

  • Brake, Front

    Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

  • Brake, Rear

    Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

  • Brake Levers

    Shimano BL-MT201

  • Handlebar

    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

  • Stem

    Marin 3D Forged Alloy, 35mm

  • Grips

    Marin MTN, Closed End

  • Headset

    FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

  • Seatpost

    Marin Alloy, 30.9mm

  • Saddle

    Marin Speed Concept
