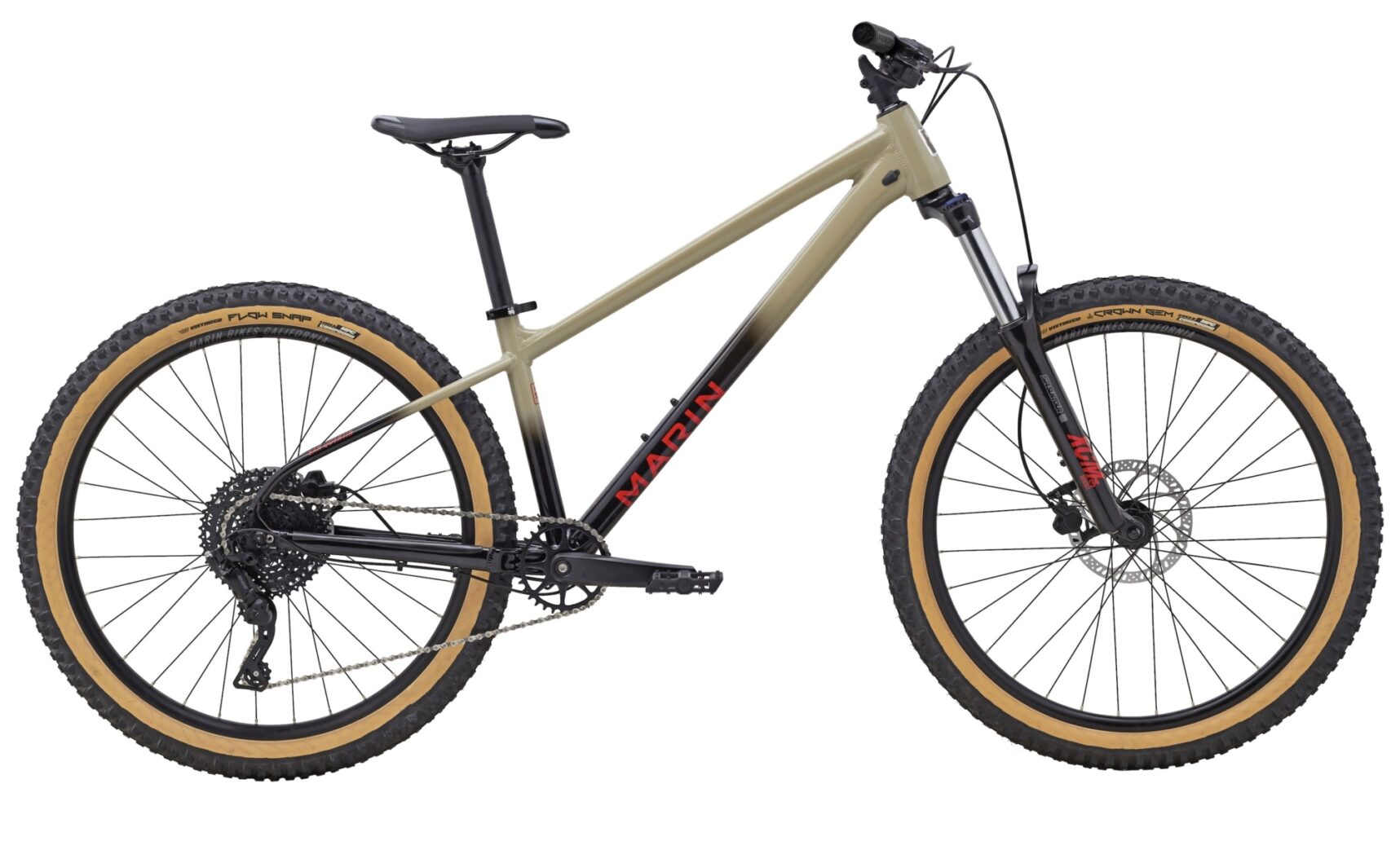

San Quentin 1

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.

Developed in conjunction with freeride legend Matt Jones, and designed to conquer the most rough and tumble trails of Marin County, the San Quentin collection lives up to the notoriety of its namesake. Blending the strength and style of dirt jump frames with the natural trail-savvy of an aggressive hardtail, the San Quentin family is the perfect mash-up for the modern trail rider.

The San Quentin's dialed frame geometry means it's perfect to send down singletrack or rocky trails, yet it's light enough to not destroy you on the way back up. Built around a stout aluminum frame, burly tires, and an aggressive geometry, the result is a bike that will bring back the hardtail buzz. The slack head tube angle paired with a steep seat tube angle creates a balanced rider position that puts your weight between the wheels. The result is perfect front wheel precision on the climbs, and the stability to descend like it’s on rails, pulling through corners with an intuitive feel. The bike's massive standover, slick frame tubes, and fantastic paint job really make it stand out. With ISCG05 tabs for maximum chain retention and the ability to run up to a 2.6-inch wide tire, the San Quentin is built for the new aggressive trail standard.







FRAME

Series 2 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB

FORK

SR Suntour XCM32 Boost 15x110mm Spacing, 120mm Travel, Lock Out, 27.5", Bolt-On Thru-Axle

RIMS

Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H Tubeless Compatible

HUB REAR

Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, 141mm Width, 6-Bolt Disc, 32H, Shimano Standard Freehub Body

HUB FRONT

Forged Alloy, 110x15mm, Sealed Cartridge Bearing, 6-Bolt Disc, 32H

SPOKES

14g Black Stainless Steel

TIRES

Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead

DERAILLEUR REAR

MicroShift Advent, 9-Speed, with Clutch

SHIFT LEVER

MicroShift Advent, 9-Speed with Bearing Movement

CRANKSET

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

BOTTOM BRACKET

Sealed Cartridge Bearing, Square Taper

CHAIN

KMC X-9

CASSETTE

Sunrace, 9 Speed, 11-46T

BRAKES FRONT

Tektro M275 Hydraulic Disc, 180mm Rotor

BRAKES REAR

Tektro M275 Hydraulic Disc, 160mm Rotor

BRAKE LEVERS

Tektro M275 Hydraulic Disc

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM

Marin 3D Forged Alloy, 45mm

GRIPS

Marin MTN, Closed End

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST

Marin Alloy, 30.9mm

SADDLE

Marin Speed Concept

PEDALS

Nylon Platform
